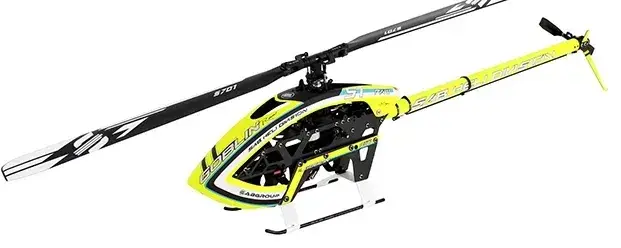

SG763 ILGoblin RAW Yellow
AIRFRAME weight: 2122 gr (no blades, no battery, no electronics)
Main rotor diameter: 1576 mm (with 700 mm main blades)
Main blade length: 650 to 730 mm
Tail rotor diameter: 292 mm (with 110 mm tail blades)
Tail blade length: 105 to 115 mm
Cyclic Servos: Standard size 40 mm
Tail Servo: Standard size 40 mm
Main Rotor Ratio: 11.8 to 8.8 (21T included: 10.1:1)
Tail Rotor Ratio: 5.1-4.9:1 (26T included: 4.9:1)

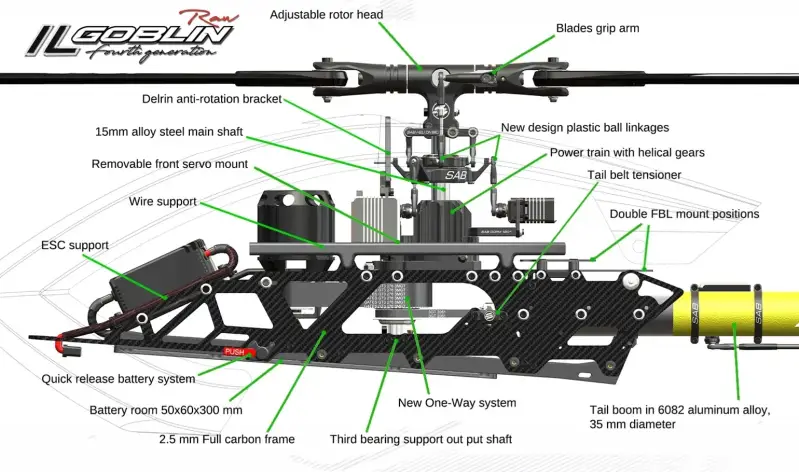

Main shaft: 15 mm, Tail shaft: 8 mm

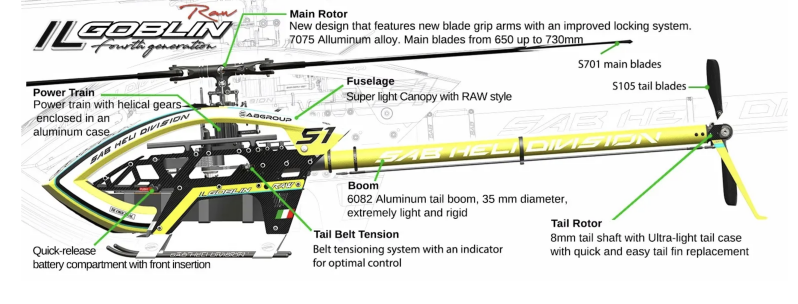

Aluminum tail boom
Battery room: 50x60x300 mm
Description
The ILGoblin RAW Yellow incorporates a super light-weight aluminium alloy frame. In addition to a new gearbox and many more improvements this helicopter is a real powerhouse. This ILGOBLIN RAW Yellow is build to perform at the highest level, for peak manoeuvrability and super high speeds.
The components incorporated into this helicopter are made to last and to make modifying / upgrading your SG763 ILGOBLIN RAW Yellow extremely easy.
